Investment casting, also known as lost wax casting, is a precision manufacturing process used to create metal parts with complex shapes, smooth surfaces, and tight tolerances. It is one of the oldest metal-forming methods in the world, yet it remains widely used today in industries such as aerospace, automotive, medical equipment, machinery, and industrial components.

The process begins with a wax pattern made in the exact shape of the final product.

This wax model is usually produced by injecting wax into an aluminum mold.

Several wax patterns can be attached to a central wax runner, forming what is called a tree. The tree is then repeatedly dipped into a ceramic slurry and coated with fine sand until a hard ceramic shell forms around it.

Once the ceramic shell has dried and hardened, it is heated so the wax inside melts and flows out.

This leaves behind a hollow cavity that perfectly matches the original wax shape.

This step gives the process its name: the wax is “lost.”

Molten metal such as stainless steel, carbon steel, aluminum, brass, or alloy steel is then poured into the ceramic mold.

After cooling and solidification, the ceramic shell is broken away, and the finished metal part is removed.

One of the biggest advantages of investment casting is its ability to produce highly detailed and intricate parts that would be difficult or expensive to make by machining or sand casting.

It offers excellent dimensional accuracy, a fine surface finish, and often requires very little secondary machining.

This reduces material waste and production costs for precision parts.

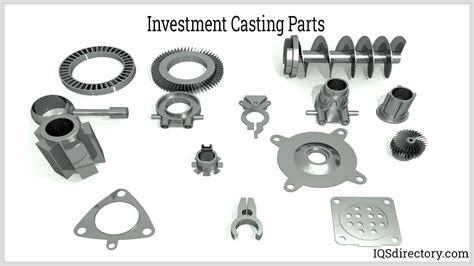

Common applications include valve bodies, pump parts, turbine blades, automotive brake components, machinery fittings, stainless steel hardware, and precision industrial components.

For export businesses and manufacturers, investment casting is especially popular because it can produce OEM parts in large volumes with consistent quality.

Compared with sand casting, investment casting gives better surface quality and tighter tolerances.

Compared with die casting, it works better for steel and stainless steel products, especially where strength and corrosion resistance are required.

In short, investment casting is one of the best choices when you need precision metal parts, smooth finish, complex geometry, and reliable repeatability.

FAQ About Investment Casting

1. What is investment casting used for?
It is used for making precision metal parts such as valve parts, pump components, automotive parts, turbine blades, and industrial machinery fittings.

2. Why is it called lost wax casting?
Because the wax pattern inside the ceramic shell is melted out before molten metal is poured in.

3. Which metals can be used in investment casting?
Common materials include stainless steel, carbon steel, alloy steel, aluminum, brass, and bronze.

4. Is investment casting expensive?
The tooling cost is higher than sand casting, but it saves money on machining and finishing for precision parts.

5. What is the main advantage of investment casting?
High precision, smooth surface finish, and ability to create complex shapes.
